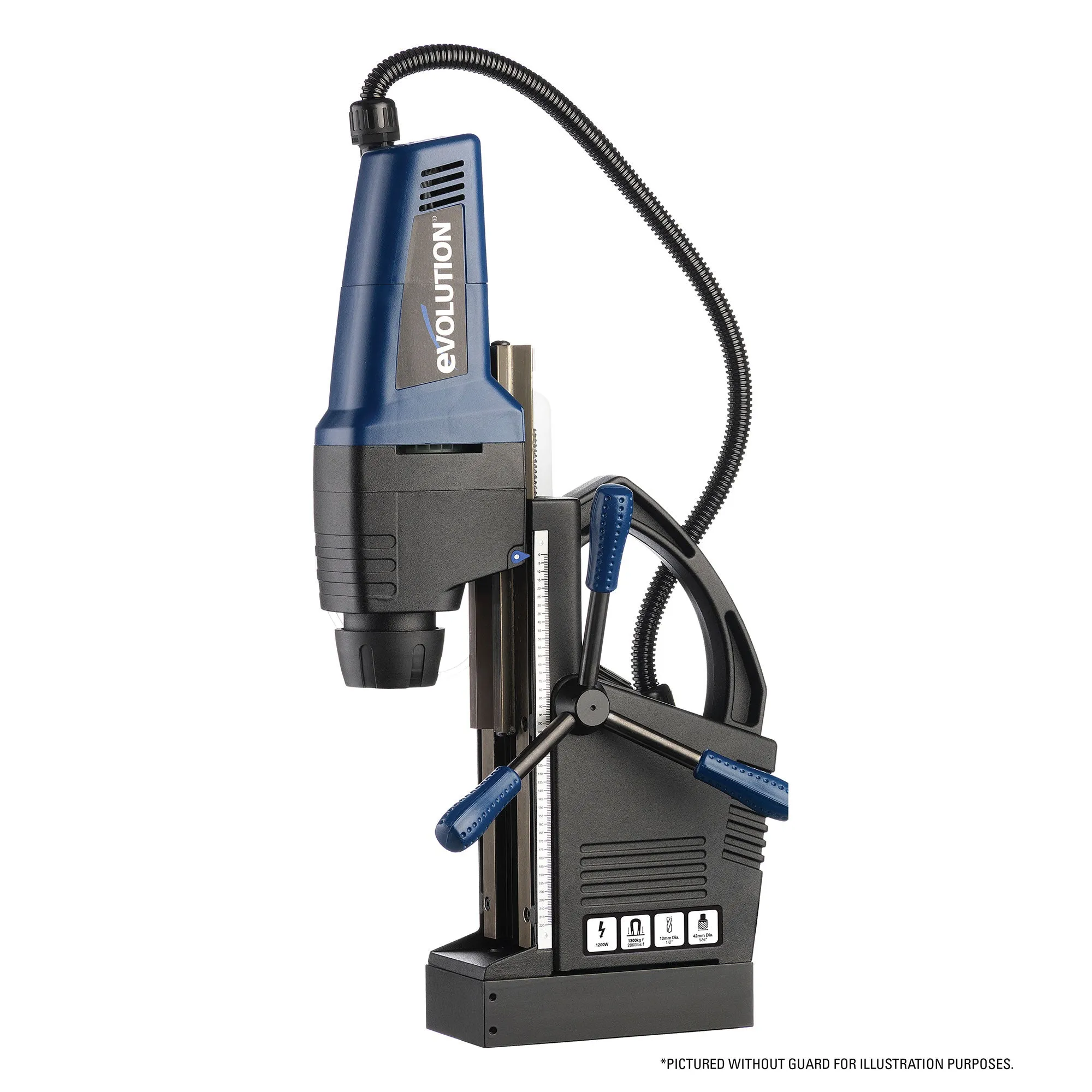

The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion. Ideal for site use - with so many buildings being built around a steel framework, a magnetic drill is an essential product and ideal for site use.

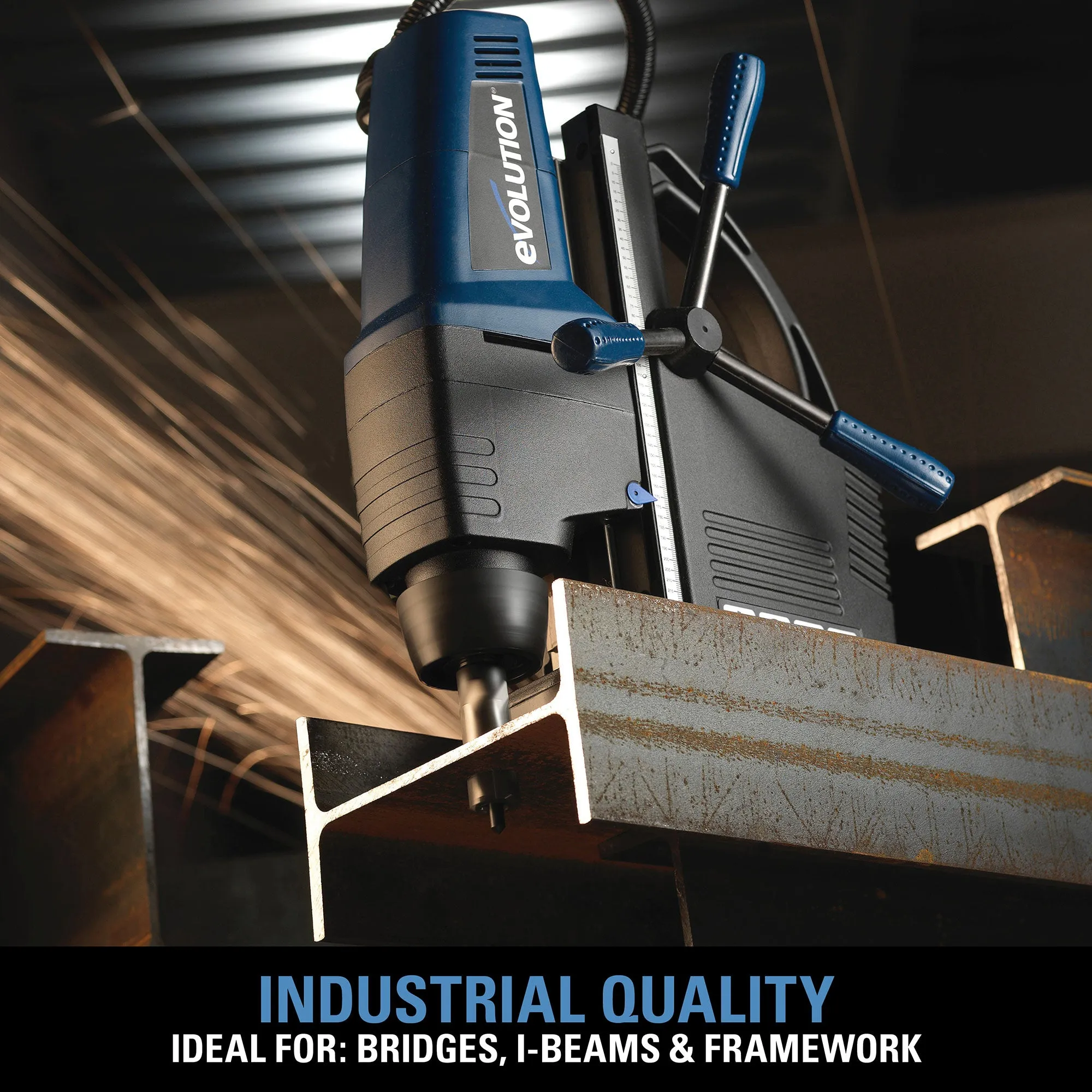

- Industrial Quality - This incredible Magnetic Drill is deceptive in its capabilities; although small in size it is well-suited for heavy-duty industrial and fabrication work. The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion.

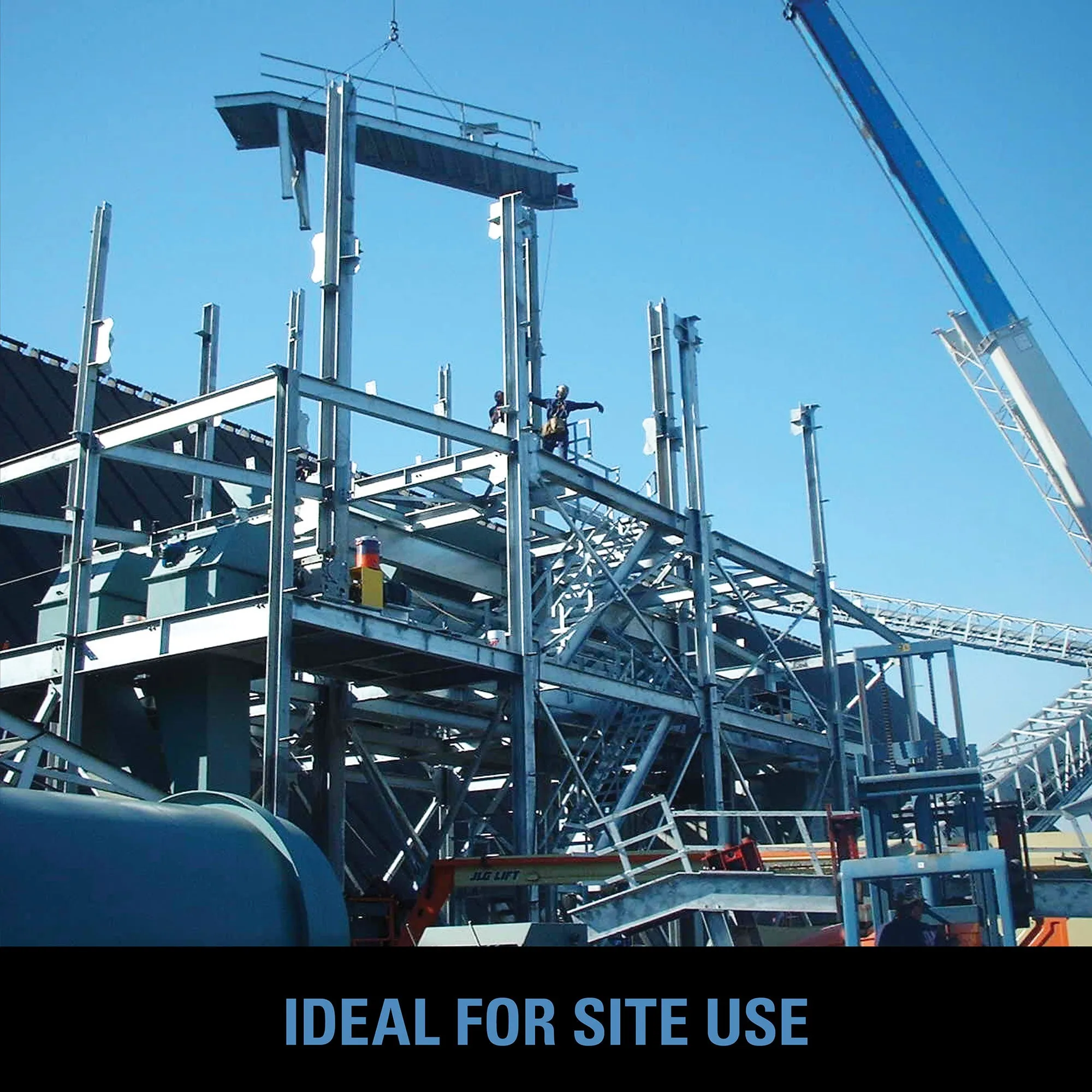

- Ideal for site use - With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use. It is also easy to carry (with the supplied case) and its lightweight makes it manageable to position in both awkward and confined spaces.

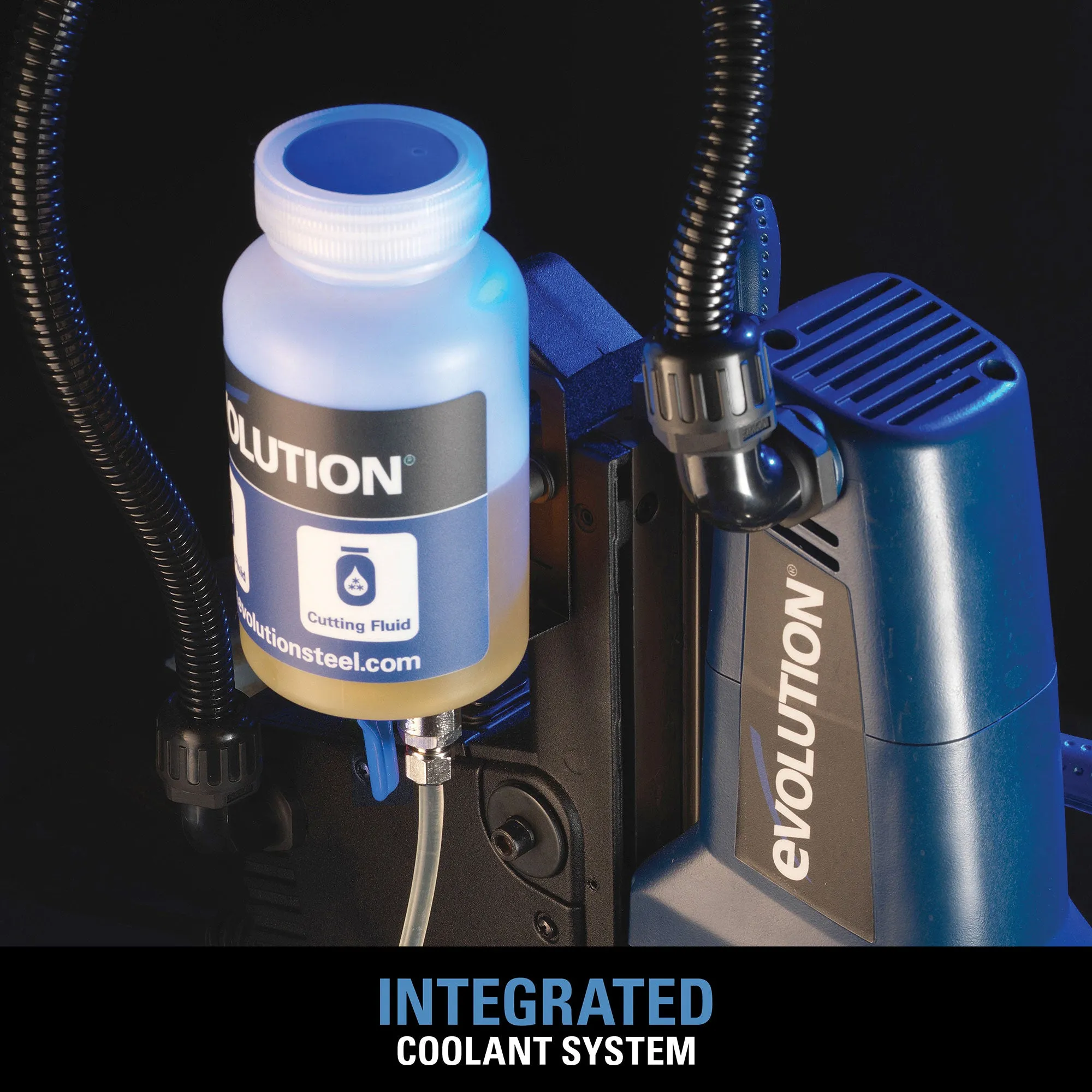

- The impressive EVOMAG42 offers an incredible value with the capability to use up to 1-5/8 inch (42mm) cutters and 1/2 inch (13mm) twist drills. The EVOMAG42 also features an integrated coolant system for magnetic drilling.
- Evolution also offers a large variety of tools to be used with the EVOMAG42. This offering includes a wide range of annular cutters, step drills, and mini-cutters. Extend the life of your cutters and get more value by using Evolution Cutting Fluid.
- Ideal For: Bridges, I-Beams and Framework
- Includes Carry Case
Cutting Capacities

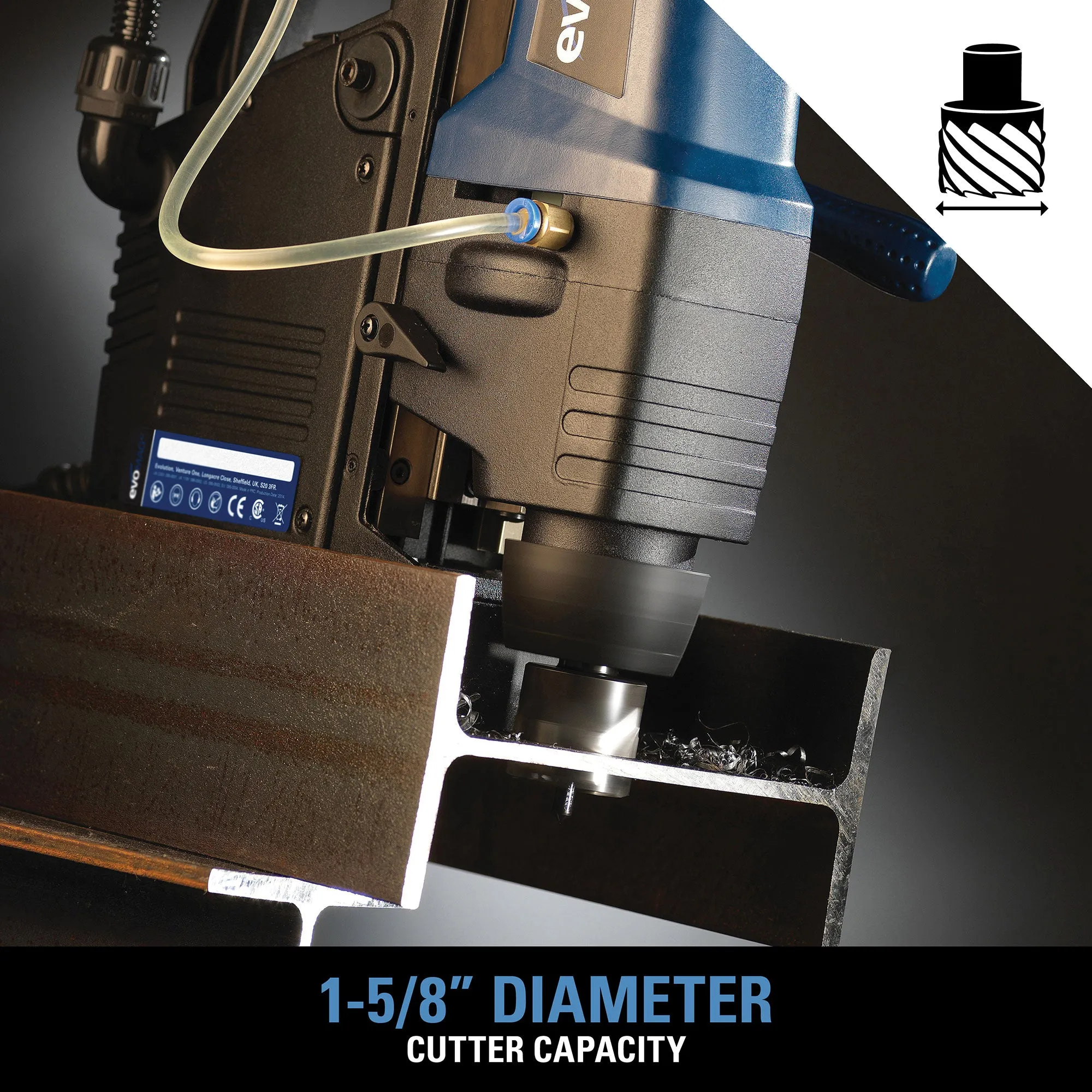

| Maximum Annular Cutting Capacity | 1-5/8 In. / 42 mm |

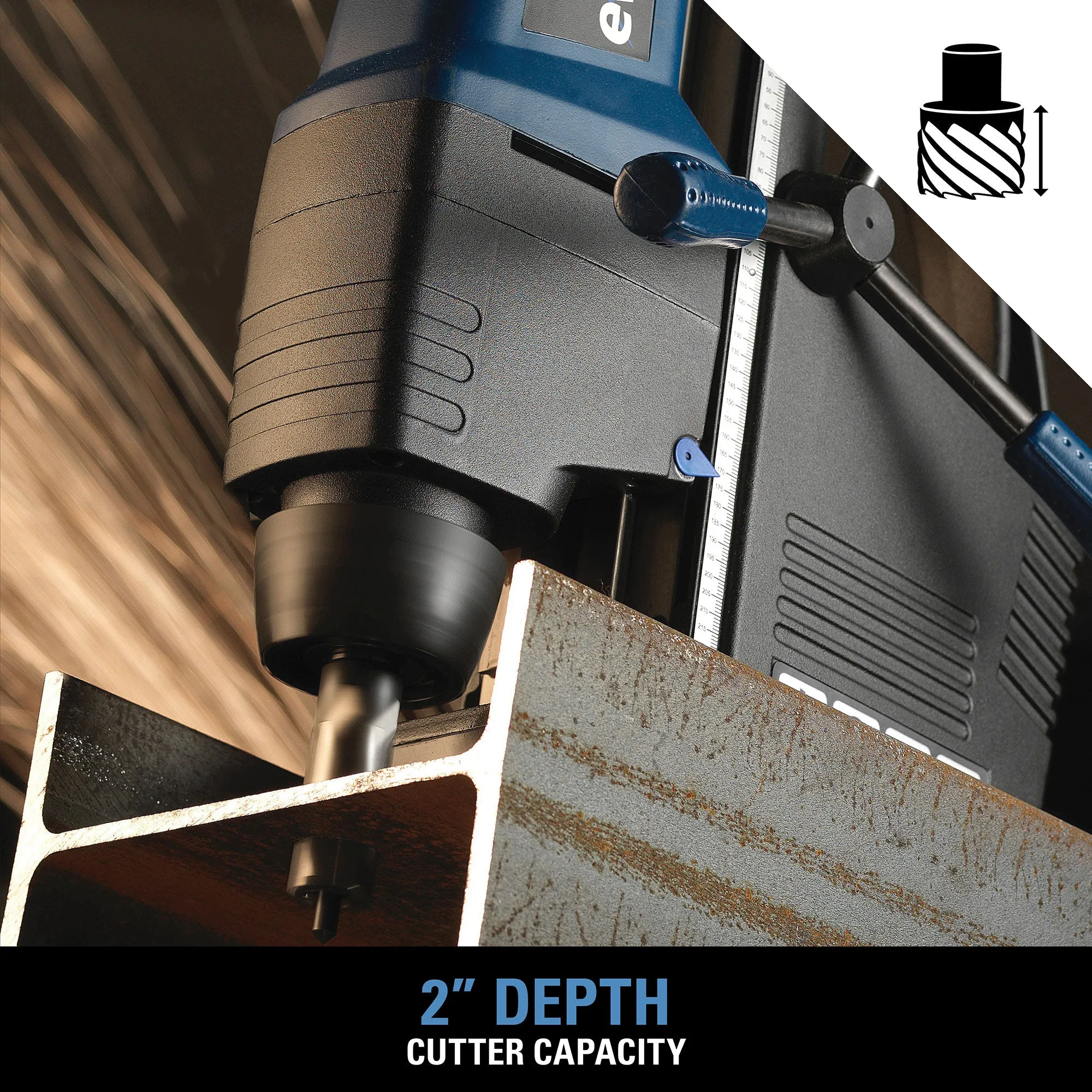

| Maximum Cutting Depth | 2 inch |
| Cutter Shank | 3/4 inch |

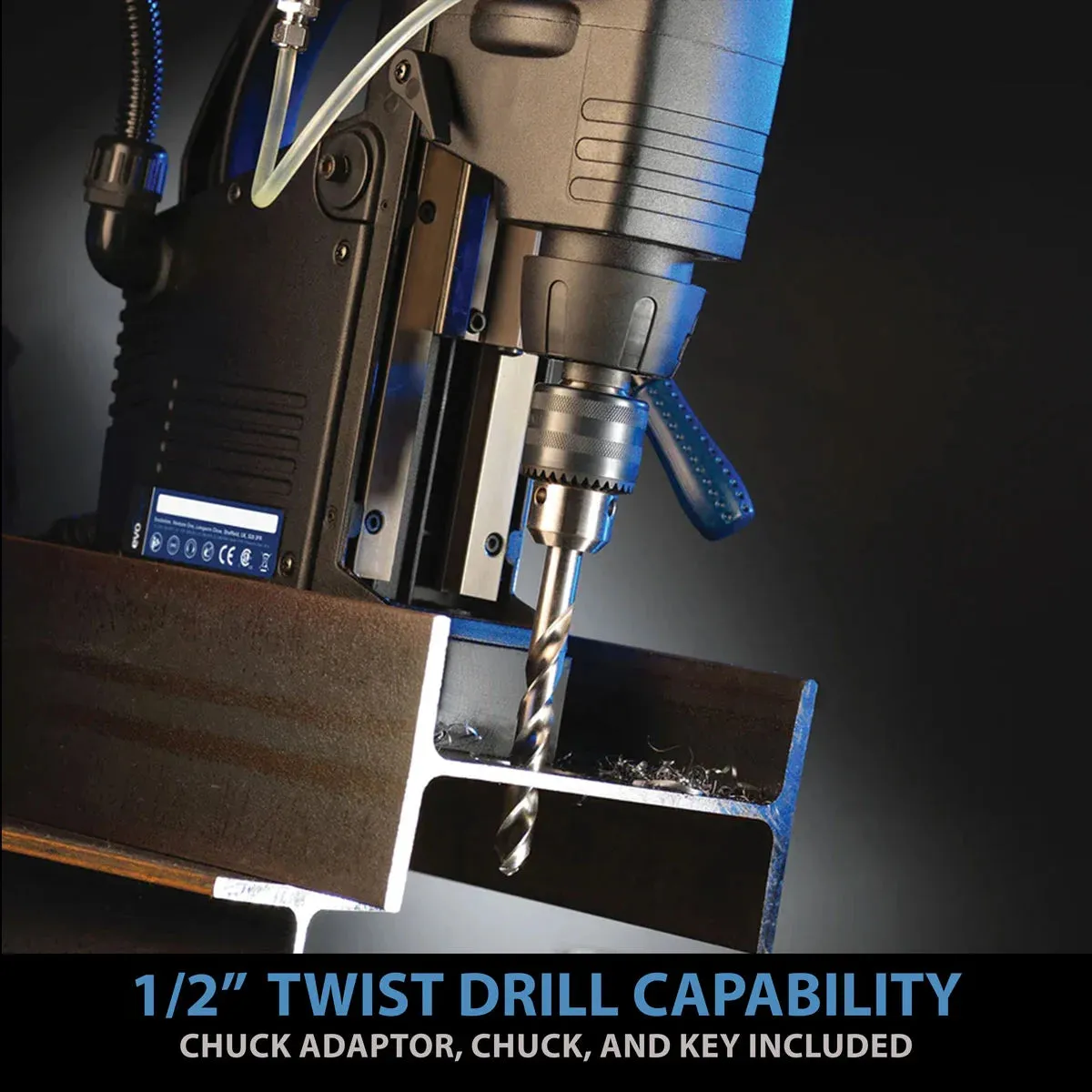

| Standard Twist Drill Capacity | 1/2 inch |
| Magnetic Adhesion | 2860lbs f |
| Minimum Plate Thickness | 3/8 inch |
Specifications
Machine Spec
| Motor (120V 60Hz): | 10A |
| Speed No Load: | 450 rpm |
| Number of Speeds | 1 |
| Insulation Class | 1 |
| Cable Length: | 8ft 2inch |
| Product Weight: | 26 lb |
Dimensions
| Magnet Dimension | 1-5/8 x 3-1/2 x 7-1/8 inch |
| Maximum Machine Height | 25-3/4 inch |
| Minimum Machine Height | 16-1/2 inch |
| Machine Width | 8-3/4 inch |
Noise Data
| Sound Pressure Level LPA: | 89.40dB(A) K:3dB(A) |
| Sound Power Level LWA: | 102.4dB(A) K=3 dB(A) |
Vibration Data
| Hand Arm Vibration | 0.629m/s2 K= 1.5m/s2 |
Items Included
| Instruction Manual |
| Coolant Tank System |
| Handles x3 |
| Safety Strap |
| Safety Guard |
| Safety Guard Fixing Screws x2 |
| Hex Key 2mm |
| Hex Key 3mm |
| Hex Key 4mm |
| Hex Key 5mm |
| Chuck with Chuck Key |
| Carry Case |
Accessories
| Image | Description | Compatible With | Part Number |
|---|---|---|---|
| 1/2" Chuck & Key | EVOMAG28 and EVOMAG42 | HTA153 | |
| Chuck Adaptor* *Required to fit the HTA153 1/2" chuck. | EVOMAG42 | HTA47 |
